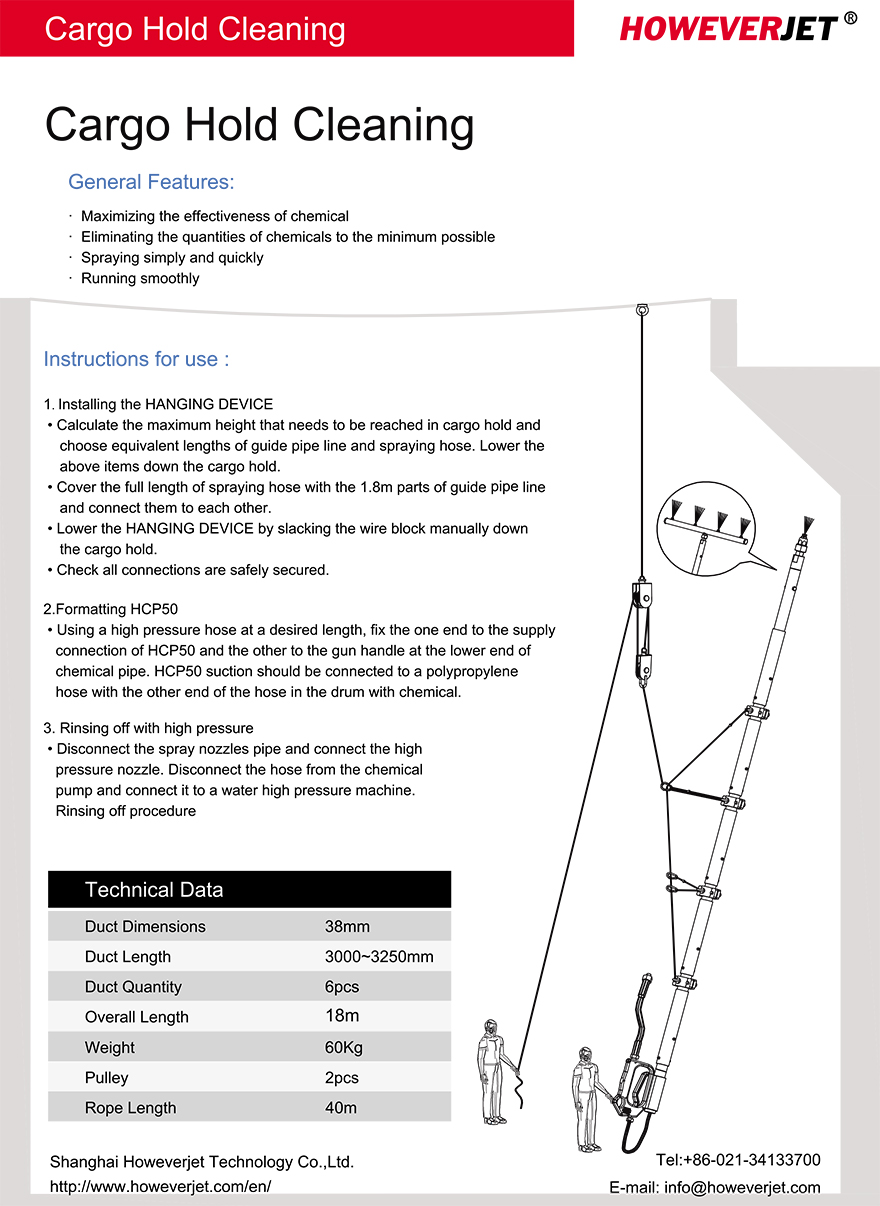

——General Features:
Maximizing the effectiveness of chemical
Eliminating the quantities of chemicals to the minimum possible
Spraying simply and quickly
Running smoothly
- Technical Data
- Brochures
|

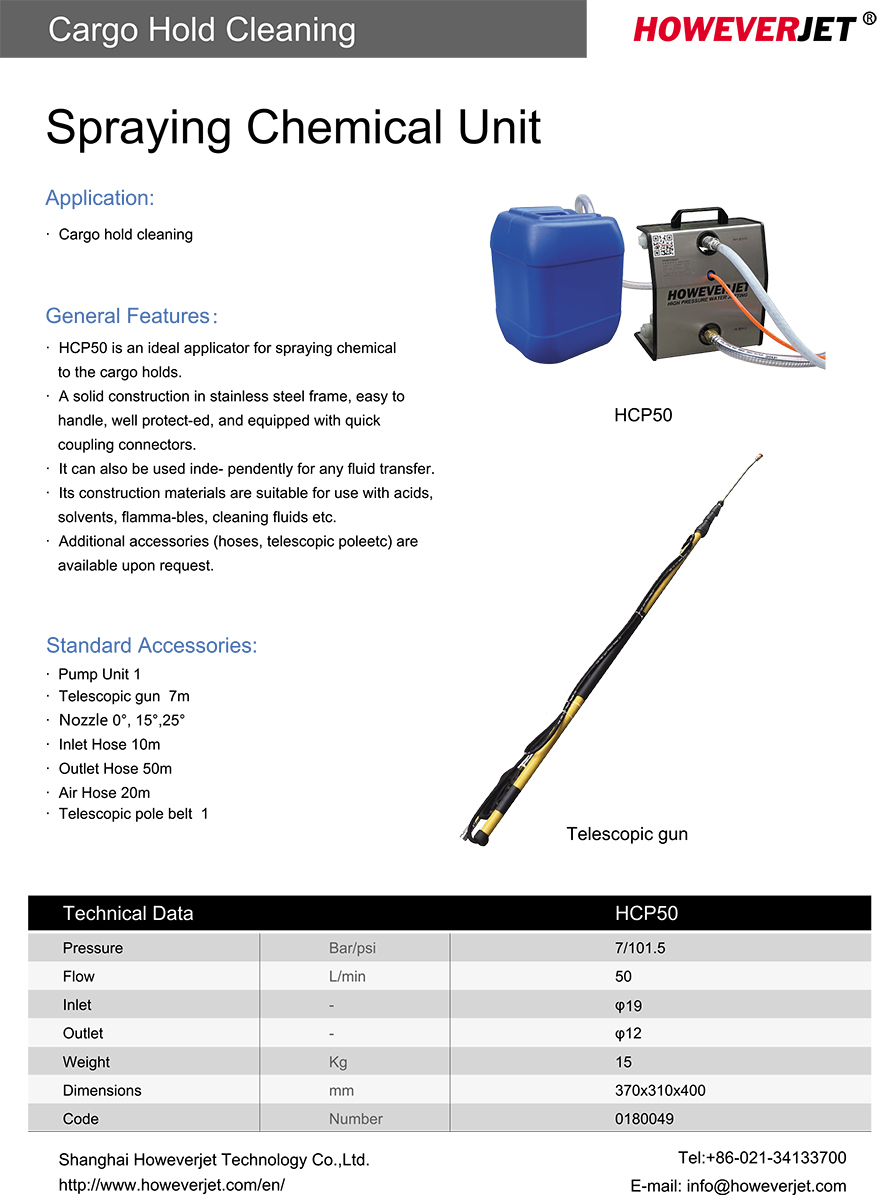

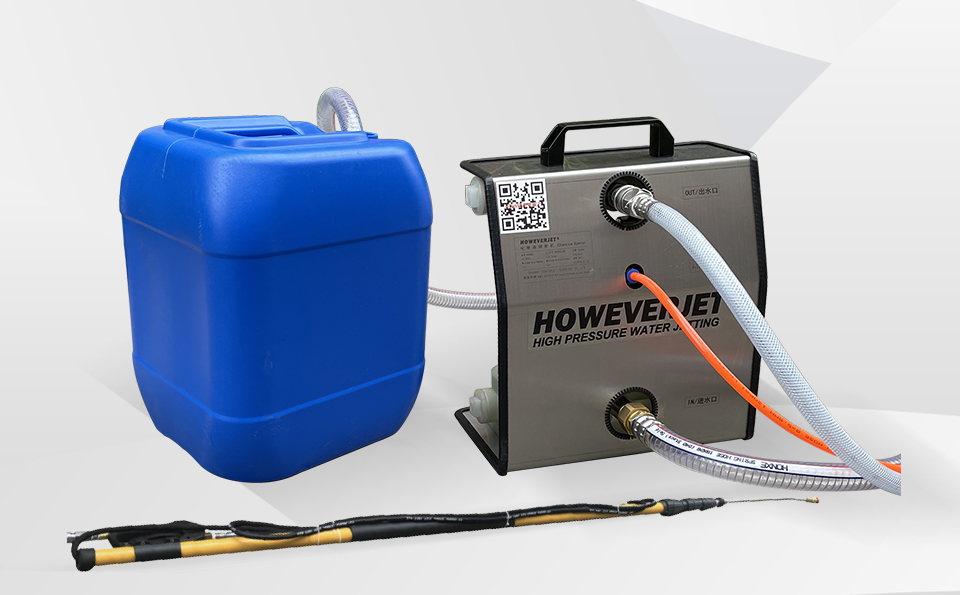

HCP50 |
|
|
Pressure(Bar/psi) |
7/101.5 |
|
Flow(L/min) |
50 |
|
Inlet |
φ19 |
|
Outlet |
φ12 |
|
Weight(Kg) |
15 |
|
Dimensions(mm) |
370×310×400 |
|
Code |
0180049 |
|
IMPA Code |
590790/92/95/96 |
|
HCP50 |
|
|
Pressure(Bar/psi) |
7/101.5 |
|
Flow(L/min) |
50 |
|
Inlet |
φ19 |
|
Outlet |
φ12 |
|
Weight(Kg) |
15 |
|
Dimensions(mm) |
370×310×400 |
|
Code |
0180049 |
|
IMPA Code |
590790/92/95/96 |
- Technical Data
- Brochures
|
HCP50 |
|
|
Pressure(Bar/psi) |
7/101.5 |
|
Flow(L/min) |
50 |
|
Inlet |
φ19 |
|
Outlet |
φ12 |
|
Weight(Kg) |
15 |
|
Dimensions(mm) |
370×310×400 |
|
Code |
0180049 |
|
IMPA Code |
590790/92/95/96 |
|
HCP50 |
|
|
Pressure(Bar/psi) |
7/101.5 |
|
Flow(L/min) |
50 |
|
Inlet |
φ19 |
|
Outlet |
φ12 |
|
Weight(Kg) |
15 |
|
Dimensions(mm) |
370×310×400 |
|
Code |
0180049 |
|
IMPA Code |
590790/92/95/96 |
